Formwork LVL

Formwork LVL

Short Description:

ROCPLEX A high performance more sustainable alternative to lumber, ROCPLEX’s Laminated Veneer Lumber (LVL) beams, headers and columns are used in structural applications to carry heavy loads with minimum weight.


Product Detail

Product Tags

SENSO formwork LVL is a Laminated Veneer Lumber (LVL) Engineered Wood Product used in concrete formwork support structures such as joists, bearers, walers and soldiers in conventional soffit formwork and vertical forms for concrete slab pouring.

These products include formwork LVL, edgeboard LVL and scaffold plank LVL.
Refer to the Specifications below for specifications on the major types of LVL formwork supplied by ROCPLEX or contact us to discuss further your needs.

SENSO formwork LVL

4根

SENSO-form

SENSO-form engineered structural LVL concrete formwork beams from SENSO Building Materials are purpose designed for the high load- bearing and corrosive environment of the concrete form work industry.
SENSO-form is structural laminated veneer lumber (LVL) for use as form work bearers and joists.
SENSO-form is light, straight and more uniform than traditional form work timber. Painted safety orange for easy visual identification, and with each length easily identified by the difference colour end section.
It is also sealed with a water resistant coating to increase its durability, providing the user with extended lifecycles and superior performance.
SENSO-form used in conjunction with ROCPLEX formply provides one of the most cost-efficient form work solutions available.

Specification: Available in
95mm x 45mm, 95mm x 47mm
95mm x 63mm , 95mm x 65mm
150mm x 77mm, 150mm x 77mm
Length comes in increments of from 2.4m to 6m.

Refer to the Specifications below for specifications on the major types of LVL formwork supplied by ROCPLEX or contact us to discuss further your needs.

Features:
Highest strength, yet light to handle.
Waterproof coating for improved dimensional stability.
Engineered straightness and consistent performance.
Manufactured in lengths up to 6m, minimising wastage.
Chamfered edges for comfortable handling.
Available ex-stock
Competitively priced
Manufactured from 100% sustainably sourced timbers.
SENSO formwork LVL has full Chain of Custody aligned with the FSC and PEFC.

Refer to the Specifications below for specifications on the major types of LVL formwork supplied by ROCPLEX or contact us to discuss further your needs.

edge form

SENSO-edge

SENSO Building Materials’s SENSO-edge structural laminated veneer lumber (LVL) is specially designed for use in concrete form work applications, SENSO-edge engineered LVL edge boards are used in formwork applications for defining edges of a concrete slab.
SENSOedge has arrised edges and is painted red for moisture protection and easy identification. SENSO-edge is light, straight and more uniform than traditional alternatives.

Specification: Available in 100 x 36, 150 x 36, 170 x 36, 200 x 36 and 240 x 36 in 4.8m and 6.0m lengths
Features:
Conforms to building codes and practices
Square edge for quality finishes
Manufactured from 100% sustainably sourced timbers
Available ex-stock
Competitively priced
SENSO-edge LVL has full Chain of Custody aligned with the FSC and PEFC.

Refer to the Specifications below for specifications on the major types of LVL formwork supplied by ROCPLEX or contact us to discuss further your needs.

https://www.rocplex.com/formwork-lvl-product/

SENSO-plank

SENSO-plank from SENSO Building Materials, is premium LVL scaffold plank engineered to the highest safety standards. has established a reputation for safe and reliable performance. This strong yet lightweight laminated veneer lumber scaffolding plank is now used extensively throughout the building industry.
Every SENSO-plank is proof tested for load strength before it leaves our factory.
Specification: Available in various sizes such as 230 x 39mm in increments of 600mm from 2.4m to 4.8m.

Features:
Engineered for straightness, consistency and guaranteed performance
Individually proof tested to meet the Working Load Limit as per AS/NZS1577 - Scaffold Planks
Available in lengths from 1.5m to 6.0m with other lengths available as special manufacture
Available ex-stock
Competitively priced
High strength yet lighter and safer to handle
Chamfered edges for safer and more comfortable handling
Ends sealed with waterproof paint to minimise the uptake of moisture through the end grain
SENSO formwork LVL has full Chain of Custody aligned with the FSC and PEFC.

Refer to the Specifications below for specifications on the major types of LVL formwork supplied by ROCPLEX or contact us to discuss further your needs.

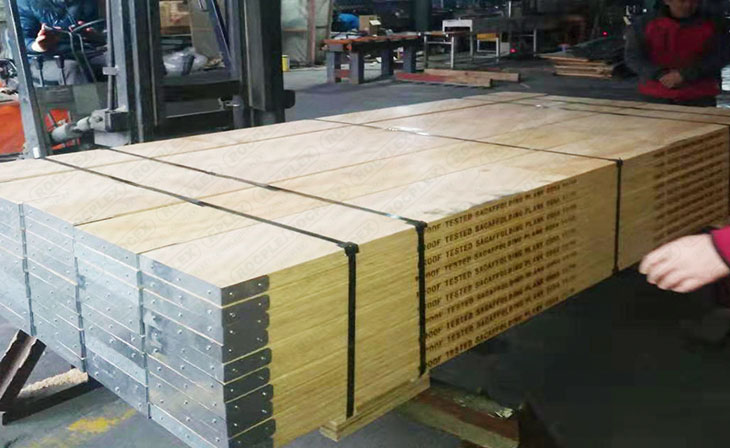

SENSO formwork LVL Packing and Loading

https://www.rocplex.com/formwork-lvl-product/
https://www.plywood.cn/formwork-lvl-product/
https://www.plywood.cn/formwork-lvl-product/

Container Type

Pallets

Volume

Gross Weight

Net Weight

20 GP

6 pallets

20 CBM

20000KGS

19500KGS

40 HQ

12pallets

40 CBM

25000KGS

24500KGS

SENSO FORMWORK LVL CERTIFIED BY

https://www.plywood.cn
https://www.plywood.cn
https://www.plywood.cn
https://www.plywood.cn
https://www.plywood.cn

Meanwhile we also can supply you the formwork systerm accessories, commercial plywood , film faced plywood etc.
We specially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding chinese plywood.
