H20 Slab Formwork Beams

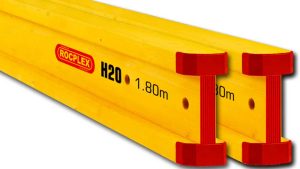

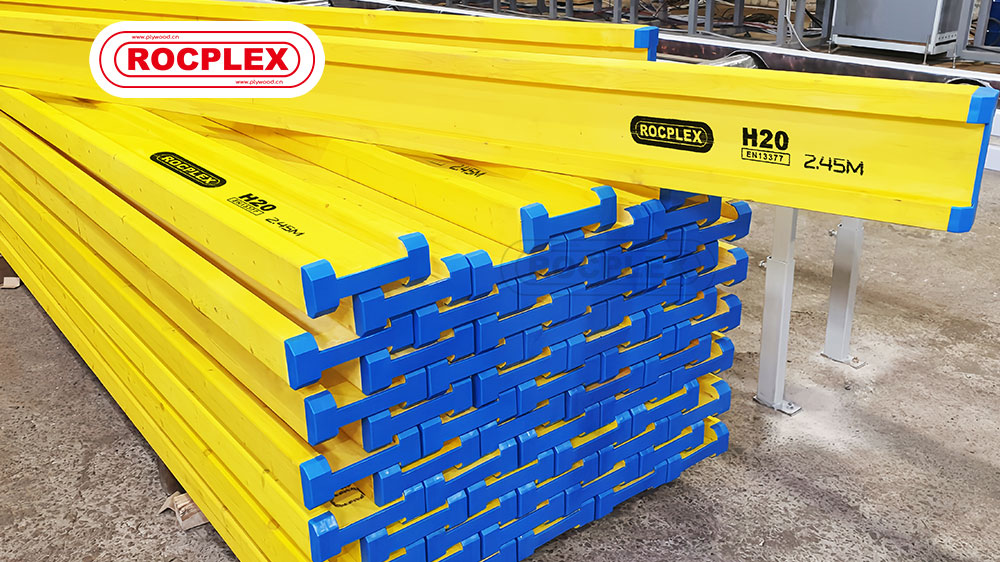

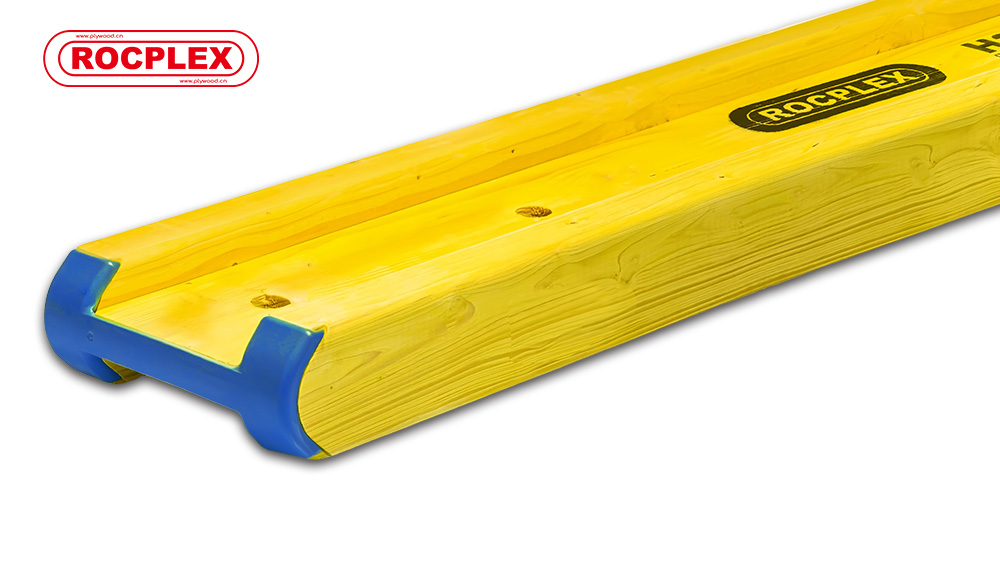

ROCPLEX H20 Slab Formwork Beams

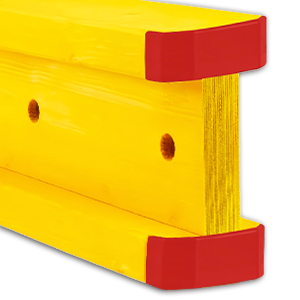

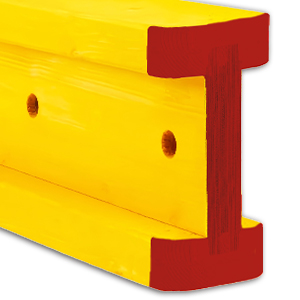

ROCPLEX H20 Slab Formwork Beams are purpose-built to meet the high-load demands of modern slab formwork. Each beam consists of solid timber flanges bonded to a high-quality plywood web using water-resistant adhesives. This construction ensures high load-bearing capacity and torsional stability throughout repeated construction use.

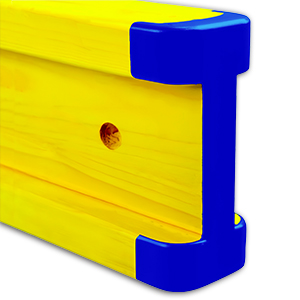

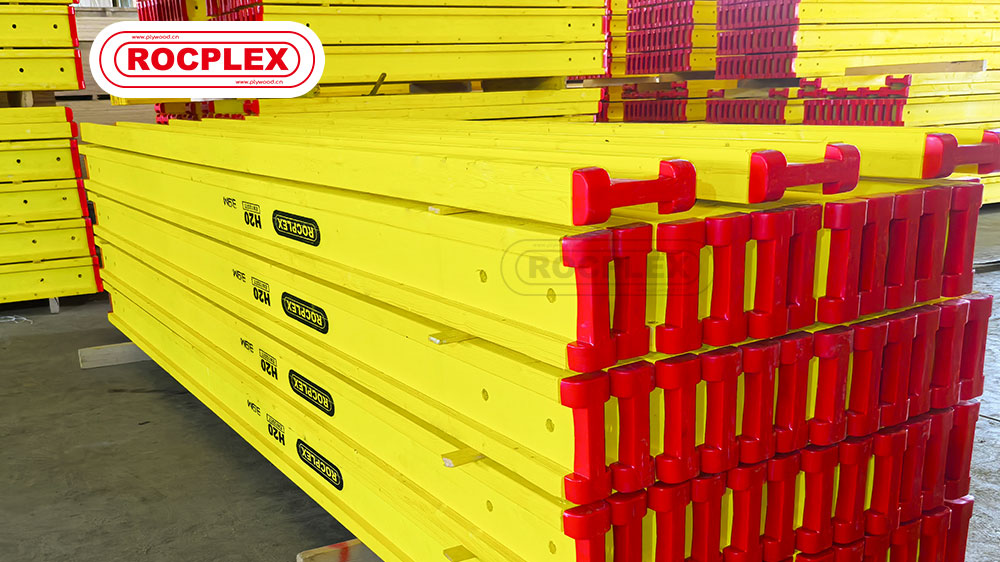

The standard H20 beam dimensions—200mm height and widths of 80mm—offer compatibility with most slab formwork systems on the global market. With end caps for impact protection and water-sealed ends to prevent swelling, ROCPLEX beams extend service life and preserve form accuracy on site.
Produced under controlled factory conditions, ROCPLEX beams undergo strict quality checks to ensure straightness, surface finish, and moisture content. Each beam resists warping and maintains strength even after multiple uses in varied climates and on-site environments.
ROCPLEX offers highly competitive H20 beam prices without compromising structural integrity. The consistent profile and performance allow faster setup and dismantling, reducing labor costs and improving overall efficiency on formwork systems.
＞＞＞

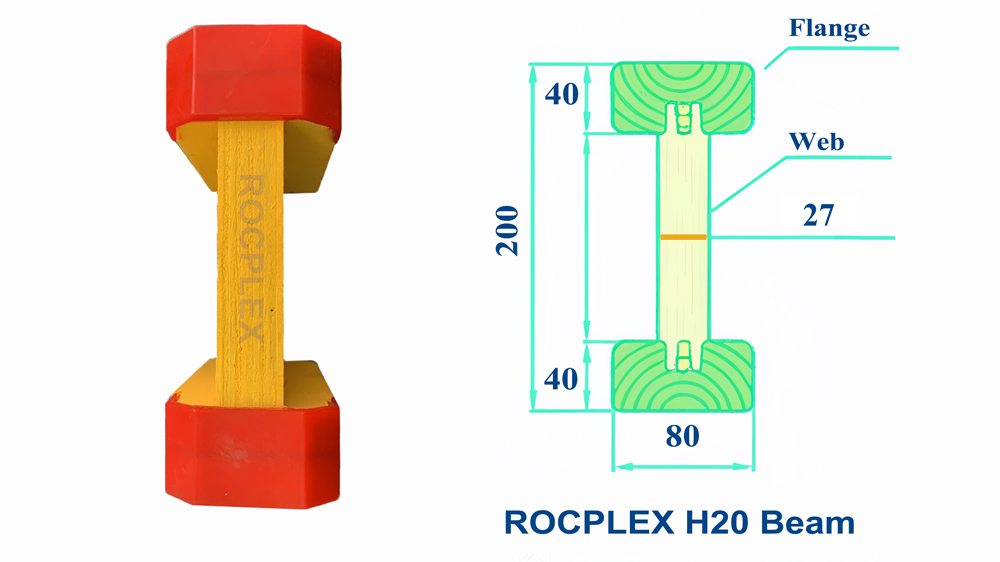

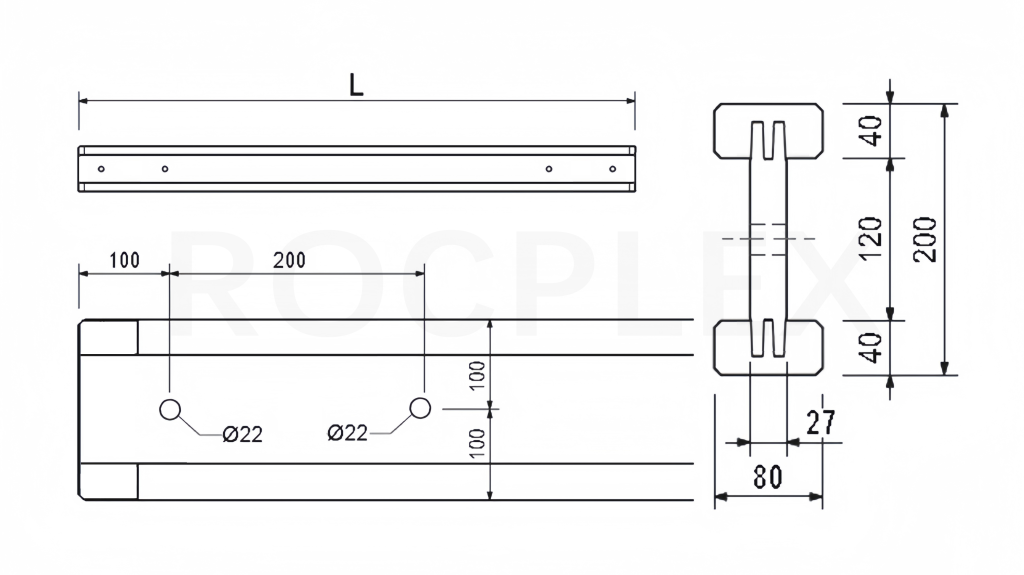

ROCPLEX H20 Slab Formwork Beams Standard Sizes
| Hight (mm) | Width (mm) | Head Hight (mm) | Web Thickness (mm) | Length (m) |
| 200 | 80 |
40 |
28 |
1.80 1.90 2.45 2.65 2.90 3.00 3.30 3.60 3.90 4.20 4.50 4.90 5.90 |
＞＞＞
ROCPLEX H20 Slab Formwork Beams Type
＞＞＞

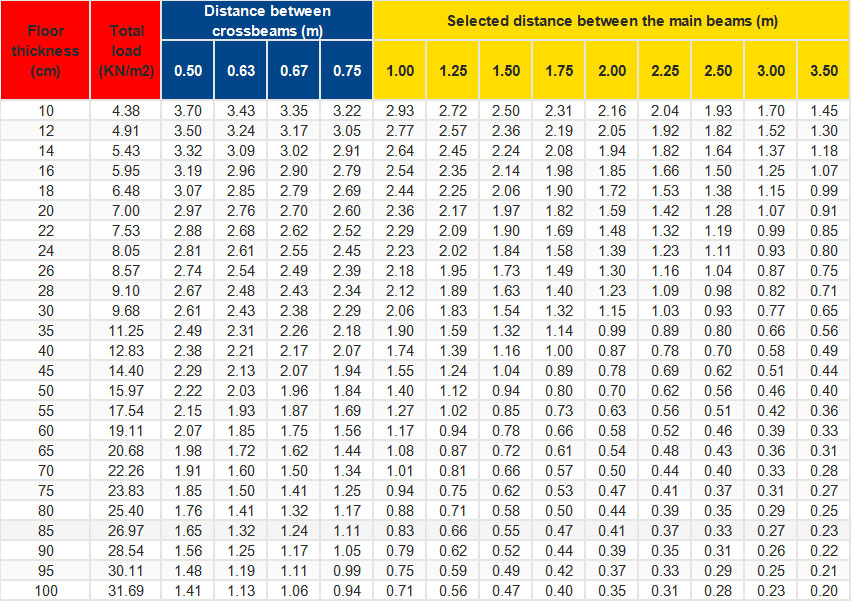

ROCPLEX H20 Slab Formwork Beams Specifications
| Permissible modulus [] | Permissible shearing force Q | ||||||||||||
| 5 kNm | 11 kN | ||||||||||||
| Section modulus Wx | Geometrical moment of inertia lx | ||||||||||||
| 467 cm3 | 4657 cm3 | ||||||||||||
| Moisture Content | Adhesive | ||||||||||||
| 8% – 15% (at time of despatch) | E0 |
||||||||||||
| Dimensional Tolerances | Density | ||||||||||||
| Available on request | 450-500 kg/m³ (approximately) | ||||||||||||
| Straightness | Certified | ||||||||||||
| Available on request | FSC / PEFC / CE / CARB | ||||||||||||
| Storage | Branding | ||||||||||||
| Store on level bearers at maximum 1800mm centres well clear of the ground, and cover to keep dry but allow ventilation | Each pallet of ROCPLEX formworkk beams is branded as least once with the product name for identification and evidence of compliance with manufacturing control standards |
＞＞＞
ROCPLEX H20 Slab Formwork Beams Features & Benefits
- High Load Capacity
- Built for performance under concrete slab weight and construction site stress.
- Standardized Dimensions
- 200mm x 80mm profiles ensure compatibility with global formwork systems.
- Enhanced Durability
- Protected ends and water-resistant adhesives increase reusability and reduce swelling risk.
- Accurate Alignment
- Precision machining provides true beam lines for clean slab finishes.
- Cost-Effective Lifecycle
- Competitive H20 beam price and multiple reuses help lower project costs.
- Global System Compatibility
- Fully compatible with Doka H20 beams and other market-leading formwork components.
- OEM or ODM service available.
＞＞＞
ROCPLEX H20 Slab Formwork Beams Certified By
＞＞＞
ROCPLEX H20 Slab Formwork Beams Certified By
 |  |  |  |  |  |  |
ROCPLEX H20 Slab Formwork Beams are widely used in reinforced concrete slab construction, including residential, commercial, and infrastructure projects. They serve as the primary load-carrying members in table formwork, modular systems, and conventional support structures.
The lightweight nature of the beams allows easier handling, lifting, and positioning. This makes them ideal for high-volume job sites and projects requiring rapid turnover of formwork cycles.
Formwork subcontractors and system formwork companies integrate H20 beams in slab frameworks, ensuring structural stability and cost efficiency from the first pour to final stripping.
Enhance your slab formwork efficiency and durability with ROCPLEX H20 Slab Formwork Beams. Contact ROCPLEX today for specifications, H20 beam prices, and global delivery support
＞＞＞
ROCPLEX H20 Slab Formwork Beams FAQ
Q: What are ROCPLEX H20 Slab Formwork Beams?
A: These are timber formwork beams made of solid wood flanges and a plywood web, designed for high-load concrete slab applications.
Q: What are the standard dimensions of H20 beams?
A: ROCPLEX H20 beams typically measure 200mm in height and 80mm in width. Custom lengths are available upon request.
Q: Are ROCPLEX H20 beams water-resistant?
A: Yes. The ends are sealed and the adhesives used are water-resistant, reducing swelling and improving longevity on site.
Q: Are these beams compatible with Doka and other formwork systems?
A: Yes. ROCPLEX H20 beams are dimensionally compatible with most international slab formwork systems, including Doka.
Q: Do you offer custom printing or branding on beams?
A: Yes. ROCPLEX can provide beams with custom logo printing and color-coded end caps for identification and brand visibility.
