Shuttering Plywood 9mm Phenolic Exterior Plywood For Concrete Form use Board
ROCPLEX presents its high-quality Shuttering Plywood, a 9mm Phenolic Exterior Plywood specially designed for concrete formwork applications. This durable hardwood plywood features a phenolic resin-treated film that transforms into a protective layer during production. It is available in both smooth and mesh surface variants.
The edges of the plywood are sealed with water-dispersible acrylic paint, enhancing its resistance to moisture and ensuring long-lasting performance. This type of plywood is widely utilized in the construction industry and is also popular for trailer floor production.
ROCPLEX 9mm film-faced plywood offers exceptional strength and stability, making it an ideal choice for demanding concrete formwork projects. Its precise construction ensures a secure and reliable installation process, allowing for efficient use on job sites.
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
1 |
Moisture Content |
% |
EN 322 |
7.5 |
Check out |
|
2 |
Density |
kg/m3 |
EN 323 |
690 |
Check out |
|
3 |
Bonding Quality |
Bonding Quality |
Mpa |
EN 314 |
Max: 1.68 Min: 0.81 |
Check out |
Damage Rate |
% |
85% |
Check out |
|||
4 |
Bending Modulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
6997 |
Check out |
Lateral |
6090 |
Check out |
||||
5 |
Longitudinal |
Mpa |
Mpa |
59 |
Check out |
|
Lateral |
43.77 |
Check out |
||||
6 |
Cycle Life |
About 15-25 Repeated Using Times According To Projects By Formwork Application |
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
1 |
Moisture Content |
% |
EN 322 |
8 |
Check out |
|
2 |
Density |
kg/m3 |
EN 323 |
605 |
Check out |
|
3 |
Bonding Quality |
Bonding Quality |
Mpa |
EN 314 |
Max: 1.59 Min: 0.79 |
Check out |
Damage Rate |
% |
82% |
Check out |
|||
4 |
Bending Modulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
6030 |
Check out |
Lateral |
5450 |
Check out |
||||
5 |
Longitudinal |
Mpa |
Mpa |
57.33 |
Check out |
|
Lateral |
44.79 |
Check out |
||||
6 |
Cycle Life |
About 12-20 Repeated Using Times According To Projects By Formwork Application |
Sr NO. |
Property |
Unit |
Test Method |
Value Of Test |
Result |
|
1 |
Moisture Content |
% |
EN 322 |
8.4 |
Check out |
|
2 |
Density |
kg/m3 |
EN 323 |
550 |
Check out |
|
3 |
Bonding Quality |
Bonding Quality |
Mpa |
EN 314 |
Max: 1.40 Min: 0.70 |
Check out |
Damage Rate |
% |
74% |
Check out |
|||
4 |
Bending Modulus of Elasticity |
Longitudinal |
Mpa |
EN 310 |
5215 |
Check out |
Lateral |
4796 |
Check out |
||||
5 |
Longitudinal |
Mpa |
Mpa |
53.55 |
Check out |
|
Lateral |
43.68 |
Check out |
||||
6 |
Cycle Life |
About 9-15 Repeated Using Times According To Projects By Formwork Application |

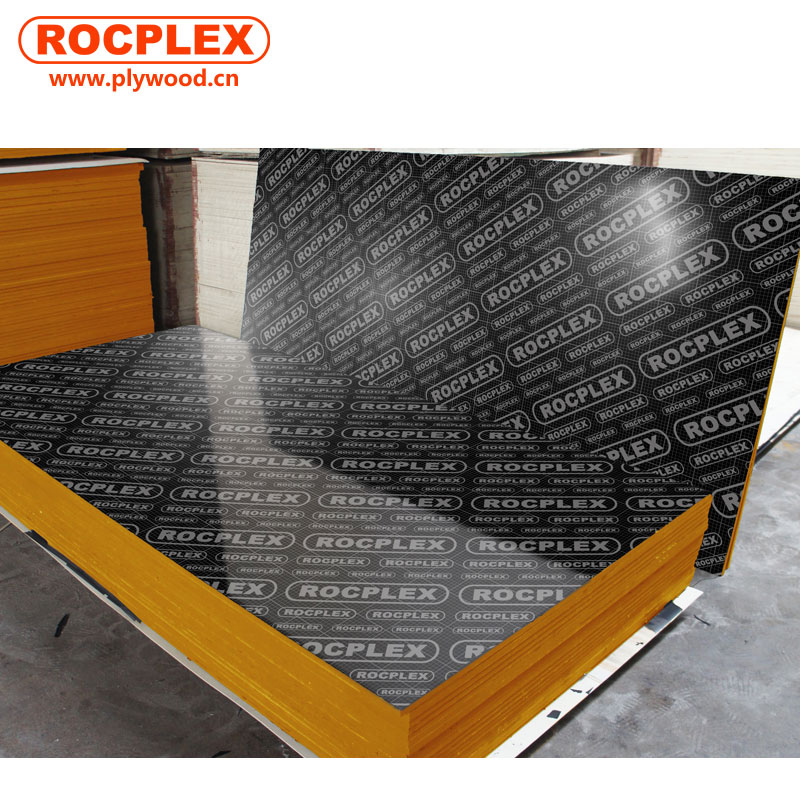

ROCPLEX 12mm Film faced plywood Save cost |
||
|
Be special for phenolic glue and film |
The film-faced plywood can be disassembled and used repeatedly for both faces, saving 25% of the cost. |
|
Optimization for the special grade of core |
|
|
Be special for adhesive |
|
ROCPLEX Film faced plywood Shorten the duration |
||
|
Excellent effect of de-molding |
Shorten 30% of the duration. |
|
Avoid the reconstruction of the wall |
|
|
Be easy to incise and blend |
|
ROCPLEX Film faced plywood the high-quality casting |
||
|
The flat and smooth faces |
The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete. |
|
The structure of waterproof and breathability |
|
|
The edges are polished carefully |
Shuttering Plywood 9mm Phenolic Exterior Plywood FAQ
Q: What is the size of this plywood?
A: The size of the plywood can vary, but it is commonly available in 8ft x 4ft (2440mm x 1220mm) sheets.
Q: What is the weight of 9mm phenolic exterior shuttering plywood?
A: The weight of the plywood depends on the specific type and brand, but 9mm thick plywood typically weighs around 22-24 kg per sheet.
Q: What is the advantage of using 9mm phenolic exterior shuttering plywood in construction?
A: This plywood is highly durable and resistant to moisture, chemicals, and temperature changes. This makes it an ideal material for use in concrete formwork, providing a smooth and uniform surface finish to the concrete.
Q: Can 9mm phenolic exterior shuttering plywood be used for other applications besides concrete formwork?
A: Yes, it can be used for other exterior applications such as wall sheathing, roofing, and flooring. It is also suitable for use in humid and wet environments such as bathrooms and kitchens.
Q: How long can 9mm phenolic exterior shuttering plywood last?
A: The lifespan of the plywood depends on various factors such as the quality of the material, the environment it is used in, and how well it is maintained. However, with proper care and maintenance, it can last for many years.
