Buy Top-Notch 18mm ROCPLEX Film Faced Plywood

Short Description:

18mm ROCPLEX Film Faced Plywood For Construction Use Plywood Board is a high-quality hardwood plywood covered with phenolic resin-treated film that turns into a protective film during production.

Send email to us

Product Detail

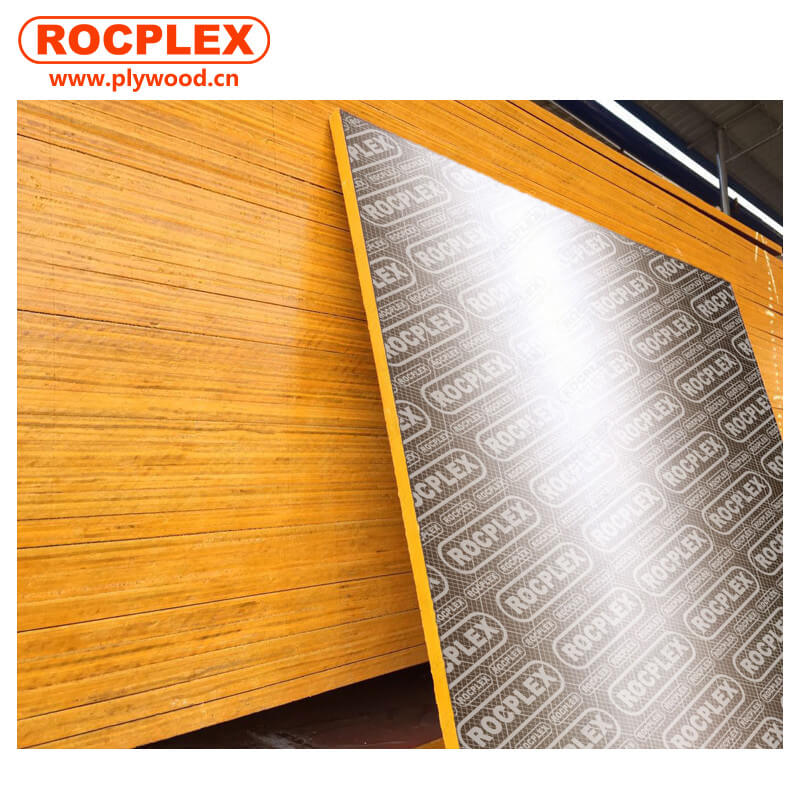

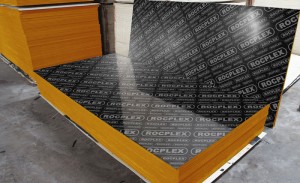

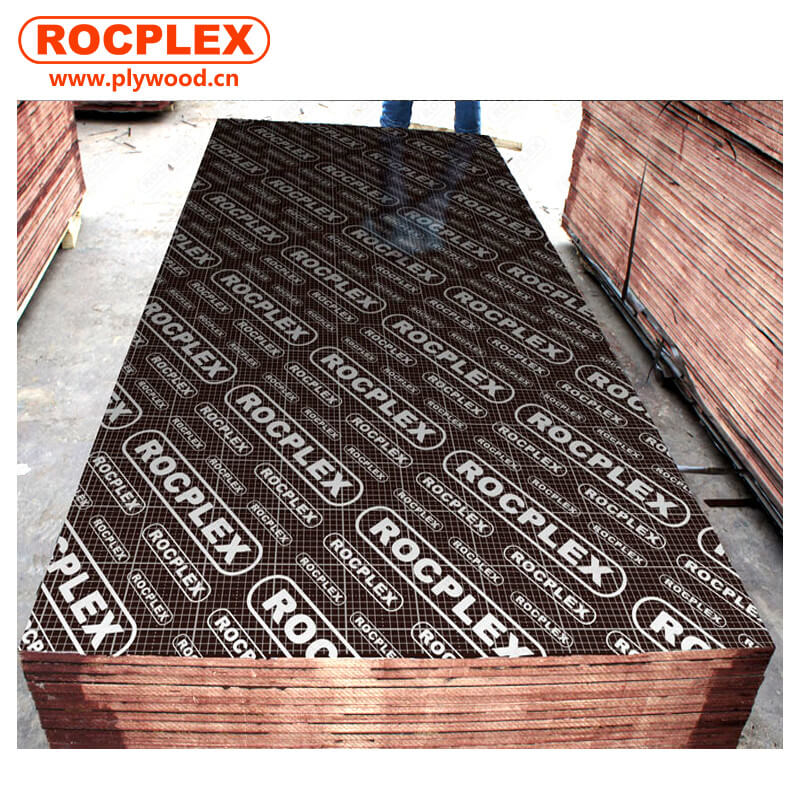

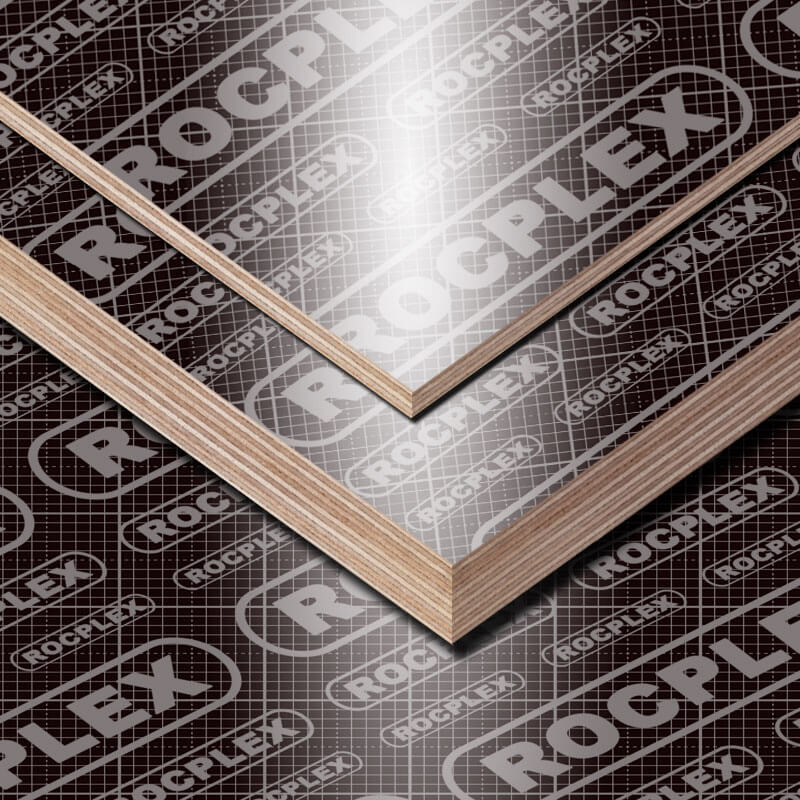

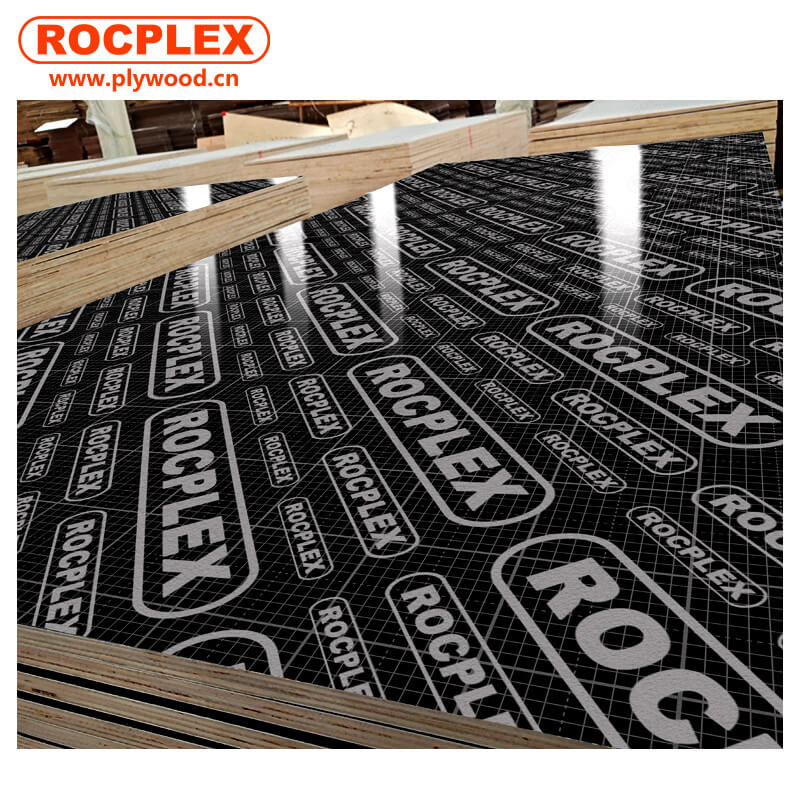

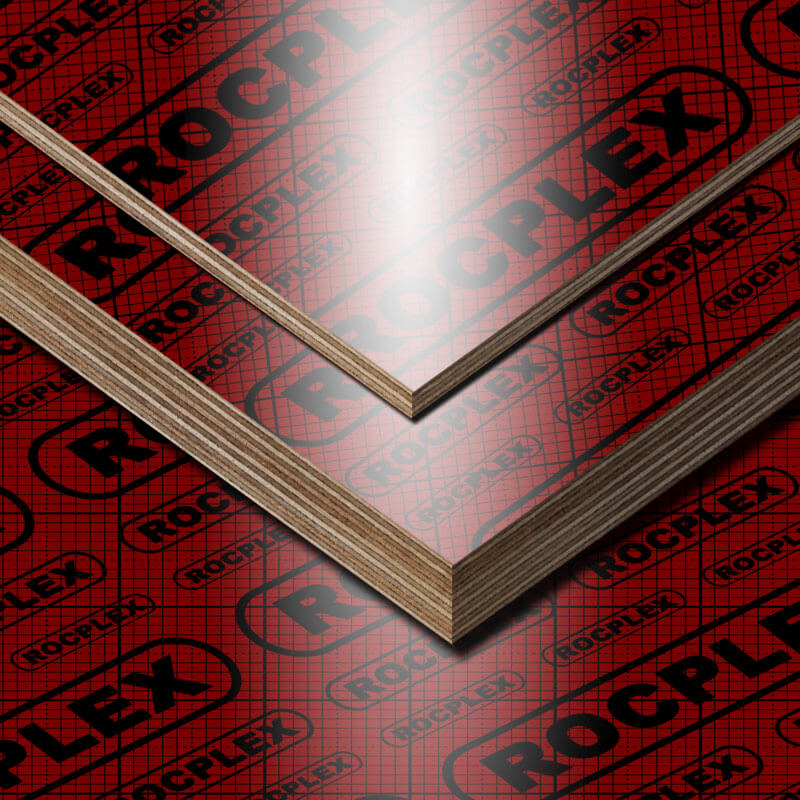

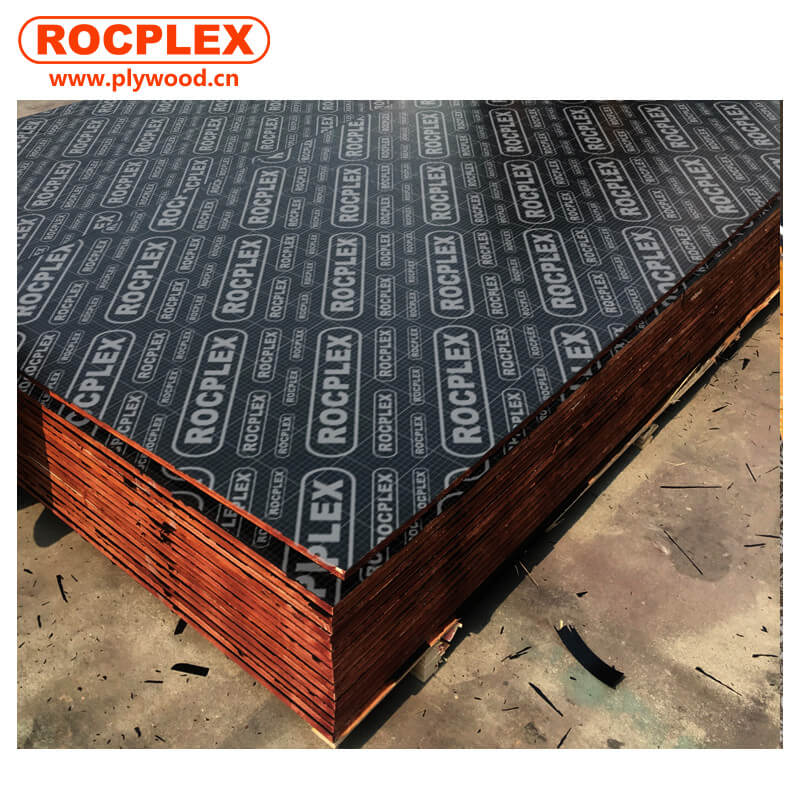

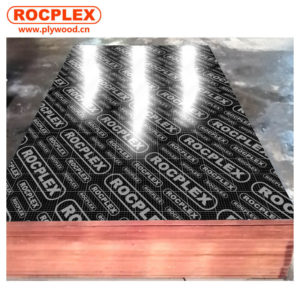

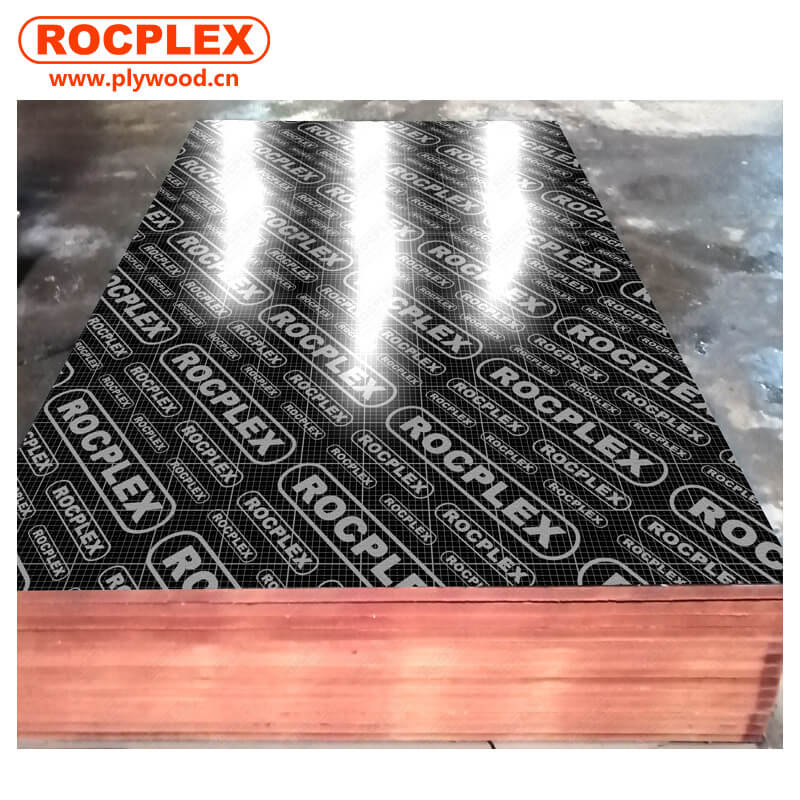

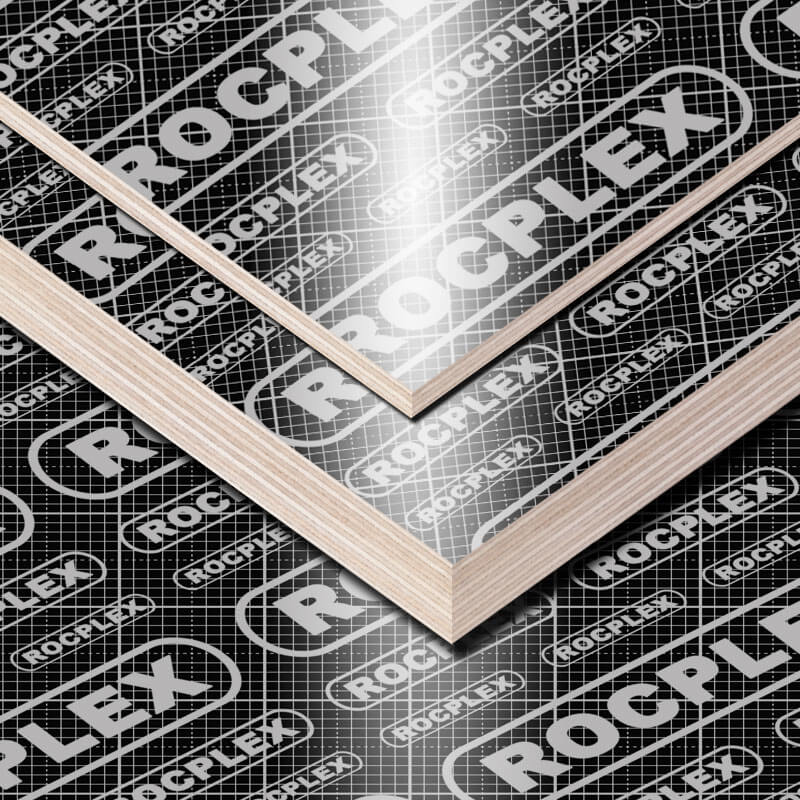

18mm ROCPLEX Film Faced Plywood is also known as concrete form, shuttering plywood, and formwork plywood. 18mm ROCPLEX Film Faced Plywood is a unique type of plywood that has wearable and water-resistant film covered on both sides. The 18mm ROCPLEX Film Faced Plywood is adhesive-impregnated paper. The film’s purpose is to prolong the useful life of the plywood by protecting the inside wood from moisture, water, and the elements. Shuttering plywood, formwork plywood, concrete formwork, floorboard, and vehicle construction are examples of plywood products that may be utilized in severe and outdoor environments.

ROCPLEX 18mm film-faced plywood – Upscale

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	7.5	Check out
2	Density		kg/m3	EN 323	690	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.68 Min: 0.81	Check out
3	Bonding Quality	Damage Rate	%	EN 314	85%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	6997	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		6090	Check out
5	Longitudinal	Mpa	Mpa		59	Check out
5	Lateral	Mpa	Mpa		43.77	Check out
6	Cycle Life	About 15-25 Repeated Using Times According To Projects By Formwork Application

ROCPLEX 18mm film faced plywood – Midscale

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8	Check out
2	Density		kg/m3	EN 323	605	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.59 Min: 0.79	Check out
3	Bonding Quality	Damage Rate	%	EN 314	82%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	6030	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		5450	Check out
5	Longitudinal	Mpa	Mpa		57.33	Check out
5	Lateral	Mpa	Mpa		44.79	Check out
6	Cycle Life	About 12-20 Repeated Using Times According To Projects By Formwork Application

ROCPLEX 18mm film faced plywood – Economical

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8.4	Check out
2	Density		kg/m3	EN 323	550	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.40 Min: 0.70	Check out
3	Bonding Quality	Damage Rate	%	EN 314	74%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	5215	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		4796	Check out
5	Longitudinal	Mpa	Mpa		53.55	Check out
5	Lateral	Mpa	Mpa		43.68	Check out
6	Cycle Life	About 9-15 Repeated Using Times According To Projects By Formwork Application

Applications of Film Faced Plywood

· Shuttering plywood with a film front:

Plywood with a film face is typically used in construction. Thus, concrete form, shuttering concrete form, and film faced plywood are other names for the same material. Customers frequently request WBP film faced plywood because it is more suited to being used as shuttering for large projects because of its ultimate purpose. But some clients need MR film coated plywood that will be utilised as shuttering for standard constructions.

· Plywood with an anti-slip film facing: used as flooring for work platforms and the construction of vehicles.

Film faced plywood may be classified into two categories: smooth film faced plywood and anti-slip film faced plywood. Plywood with an anti-slip film facing is frequently used as platform, truck, and vehicle flooring.

· Film faced plywood may also be utilized for furniture like shelves.

Film faced plywood has surfaces that are more wear-resistant and more durable than wood veneer faced plywood. As a result, it may be utilized to create sturdy furniture and shelves.

ROCPLEX Film Faced Plywood Save time, labor, and cost

ROCPLEX 18mm Film faced plywood Save cost
	Be special for phenolic glue and film	The film-faced plywood can be disassembled and used repeatedly for both faces, saving 25% of the cost.
	Optimization for the special grade of core
	Be special for adhesive
ROCPLEX Film faced plywood Shorten the duration
	Excellent effect of de-molding	Shorten 30% of the duration.
	Avoid the reconstruction of the wall
	Be easy to incise and blend
ROCPLEX Film faced plywood the high-quality casting
	The flat and smooth faces	The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.
	The structure of waterproof and breathability
	The edges are polished carefully
