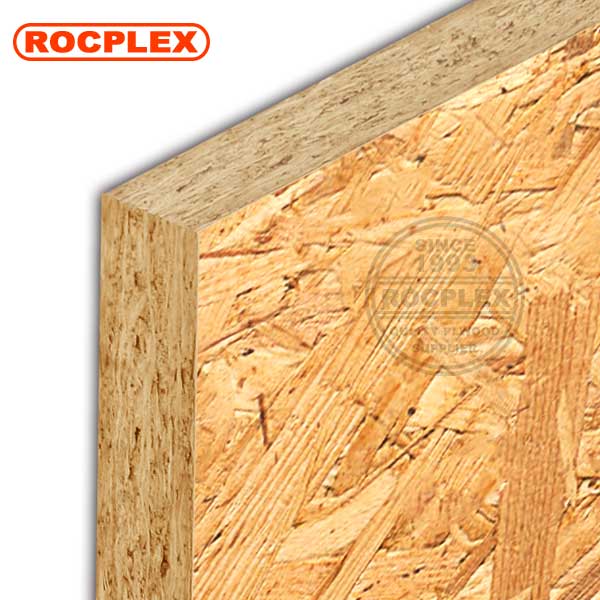

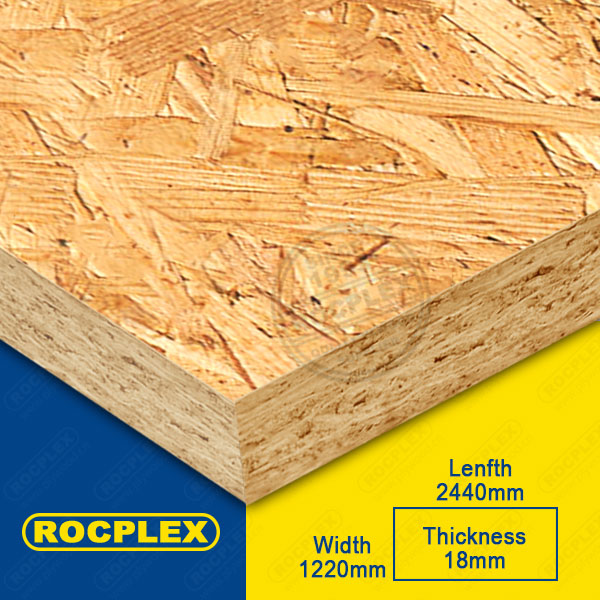

OSB 18mm – ROCPLEX 3/4 OSB Board (Oriented strand board) OSB1 , OSB2, OSB3, OSB4
ROCPLEX OSB 3 TECHNICAL SPECIFICATION | |||||
PRODUCT | OSB/3 | MATERIALS | POPLAR, PINE | ||
SIZE | 1220×2440 | GLUE | E1 GLUE | ||
THICKNESS |
6~10mm | 10~18mm | 18~25mm | ||
STATIC BENDING STRENGTH:HORIZONTAL | N/mm2 | 28 | 28 | 26 | |
VERTICAL | N/mm2 | 15 | 15 | 14 | |
ELASTIC MODULUS:HORIZONTAL | N/mm2 | 4000 | |||
VERTICAL | N/mm2 | 1900 | |||
INTERNAL BONDING STRENGTH | N/mm2 | 0.34 | 0.32 | 0.30 | |
EXPANSION RATE OF WATER ABSORPTION |
% | ≤10 | |||
DENSITY | KG/M3 | 640±20 | |||
MOISTURE | % | 9±4 | |||
FORMALDEHYDE EMISSION | PPM | ≤0.03 EO GRADE | |||
TEST AFTER THE CYCLE |
STATIC BENDING STRENGTH PARALLEL |
N/mm2 | 11 | 10 | 9 |
INTERNAL BONDING STRENGTH | N/mm2 | 0.18 | 0.15 | 0.14 | |
INTERNAL BONDING STRENGTH AFTER BOILING |
N/mm2 | 0.15 | 0.14 | 0.13 | |
EDGE THICKNESS(WITH THICKNESS TOLERANCE) |
MM | ±0.3 | |||
COEFFICIENT OF HEAT CONDUCTION | W/(Mk) | 0.13 | |||
FIRE RATING | / | B2 |
- ROCPLEX 3/4 OSB Board is a strong and durable building material made from wood strands that are oriented in different directions and bonded with resin.
- The board has high load-bearing capabilities, making it suitable for use in structural applications such as flooring, wall sheathing, and roofing.
- ROCPLEX 3/4 OSB Board is highly resistant to warping, cracking, and moisture, making it suitable for use in humid and wet environments.
- The board is cost-effective compared to other building materials, making it a popular choice for construction projects.

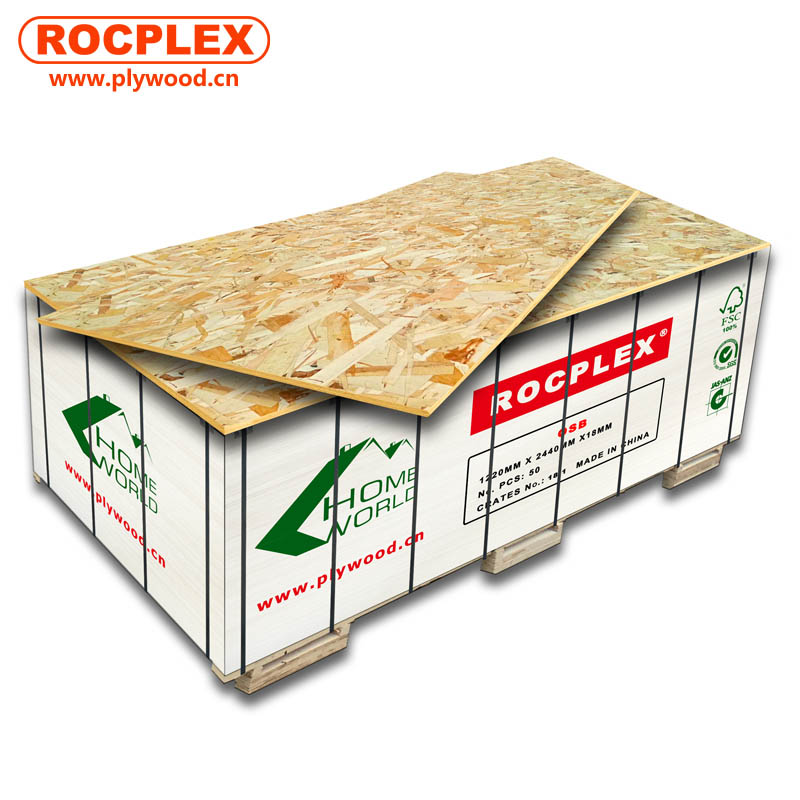

Container type |
Pallets |
Volume |
Gross weight |
Net weight |
20 GP |
8 pallets |
21 CBM |
13000KGS |
12500KGS |
40 GP |
16 pallets |
42 CBM |
25000KGS |
24500KGS |
40 HQ |
18 pallets |
53 CBM |
28000KGS |
27500KGS |
- ROCPLEX 3/4 OSB Board is commonly used as subflooring or underlayment in construction projects, providing a stable and durable base for flooring materials.

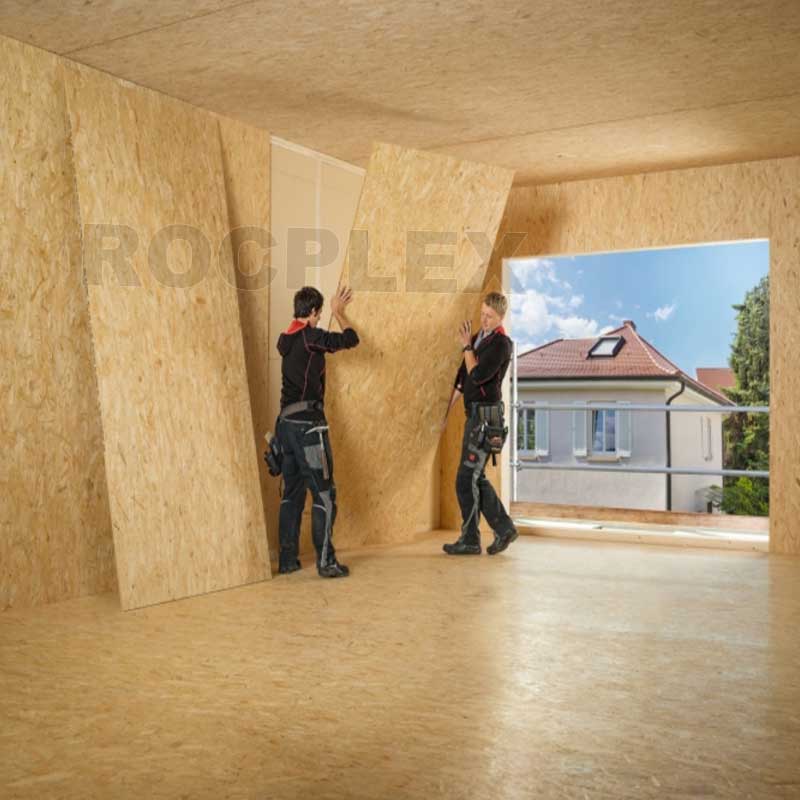

- The board is used as wall sheathing, providing a strong and moisture-resistant barrier against external elements.
- ROCPLEX 3/4 OSB Board is used in roofing applications, particularly in low-slope or flat roofs, as it offers excellent load-bearing capabilities and resistance to moisture.
- The board is also used in furniture manufacturing, providing a stable and durable material that can be easily shaped and finished.
18mm – ROCPLEX 3/4 OSB Board FAQ
Q: What are the dimensions of the 18mm ROCPLEX 3/4 OSB board?
A: The board has a thickness of 18mm (approximately 3/4 inch) and is available in various dimensions, such as 4′ x 8′ or 2′ x 8′.
Q: What is the weight of the 18mm ROCPLEX 3/4 OSB board?
A: The weight of the board can vary depending on its dimensions, but it is typically around 2.2 pounds per square foot.
Q: What are the recommended uses for the 18mm ROCPLEX 3/4 OSB board?
A: The board is suitable for a variety of construction applications, such as flooring, roofing, wall sheathing, and furniture.
Q: Is the 18mm ROCPLEX 3/4 OSB board water-resistant?
A: The board is moisture-resistant, but it is not waterproof. It can withstand some exposure to moisture, but it is not recommended for use in areas with constant water exposure.
Q: How does the cost of the 18mm ROCPLEX 3/4 OSB board compare to other types of engineered wood products?
A: The 18mm ROCPLEX 3/4 OSB board is generally more cost-effective than other types of engineered wood products, such as plywood. This makes it a popular choice for many construction projects.
