ROCPLEX Truck Antislip Plywood
ROCPLEX Truck Antislip Plywood is a high-quality and durable plywood specifically designed to provide a slip-resistant surface for various transportation applications. It is an ideal choice for trucks, trailers, and other transportation vehicles where safety and durability are paramount.

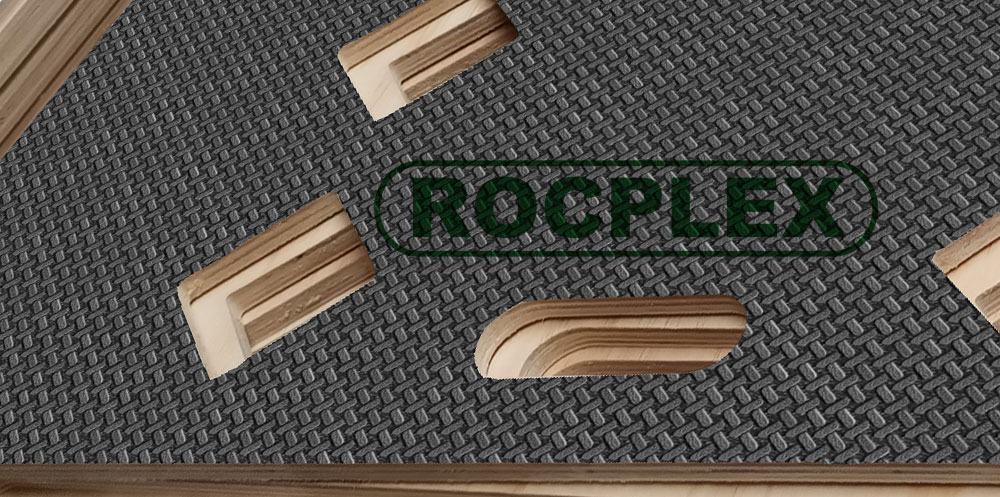

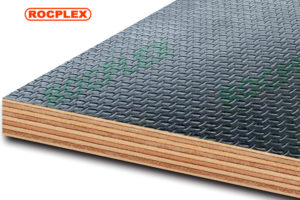

This plywood is manufactured using superior materials and construction techniques. It is made from top-grade birch veneers that are bonded together with a super E0 waterproof adhesive, known for its exceptional bond strength. The plywood features a 240gm mesh-faced surface and a 120gm smooth film back face. A phenolic film is pressed onto both surfaces of the birch plywood under high pressure and temperature. One surface is smooth, while the other has a textured pattern for enhanced traction.
The birch veneer core of this plywood is known for its fine texture, strength, and density, making it highly suitable for engineering applications that require precision, stability, flatness, and strength.
To ensure maximum protection against moisture, the edges of the plywood are sealed three times with waterproof paint in the factory, minimizing the penetration of moisture into the material.
ROCPLEX Truck Antislip Plywood sheets are designed to offer improved resistance to abrasion, moisture penetration, chemicals, insects, and fungi. It meets the EN636-2S standard, ensuring its compliance with industry requirements and quality standards.
Sr NO. | Property | Unit | Test Method | Value Of Test | Result | |
1 | Moisture Content | % | EN 322 | 7.5 | Check out | |
2 | Density | kg/m3 | EN 323 | 690 | Check out | |
3 | Bonding Quality | Bonding Quality | Mpa | EN 314 | Max: 1.68 Min: 0.81 | Check out |
Damage Rate | % | 85% | Check out | |||
4 | Bending Modulus of Elasticity | Longitudinal | Mpa | EN 310 | 6997 | Check out |
Lateral | 6090 | Check out | ||||
5 | Longitudinal | Mpa | Mpa | 59 | Check out | |
Lateral | 43.77 | Check out | ||||
6 | Cycle Life | About 15-25 Repeated Using Times According To Projects By Formwork Application |
- High-quality, durable, and slip-resistant plywood solution for transportation applications.
- Outstanding slip resistance for enhanced safety in demanding environments.
- Offers excellent durability and moisture resistance for long-lasting performance.
- Versatile application in truck and trailer flooring, ramps, load-bearing surfaces, and more.
- Easy to install, cut, drill, and work with using standard woodworking tools.
- Low-maintenance design for reduced upkeep and optimal performance.
- Maintains dimensional stability under varying conditions, preventing warping.
- Built to withstand heavy-duty use in challenging transportation environments.
- Provides reliable grip and traction to prevent accidents and ensure cargo stability.
- Enhances safety and reduces the risk of slips, trips, and falls during transportation.
- Offers a cost-effective solution with long-term value and durability.
Container Type | Pallets | Volume | Gross Weight | Net Weight |
20 GP | 8 pallets | 22 CBM | 13000KGS | 12500KGS |
40 HQ | 18 pallets | 53 CBM | 27500KGS | 28000KGS |
- Ideal for automotive applications such as trailer floors, train floors, airplane floors, vehicle floors, and van linings.
- Suitable for use in the manufacturing of flight cases, hard cases, soft cases, flight chests, and speaker cases.
- Adds a decorative touch in interior design, furniture making, shop fitting, and joinery projects.
- Used in stage and scaffold systems for applications like damper flooring, scaffolding platforms, stage systems, stands, terraces, and sports/playgrounds.
- Provides anti-slip properties for podium stage floors, cold room/cold storage panels, and cold weather panels used in cooling systems.
- Reliable and durable material for constructing industrial trolley bases.
- Ensures sturdy and reliable flooring in horse boxes for safe transportation.
- Offers a versatile solution for various case manufacturing needs, including flight cases and speaker cases.
Please contact our sales team for more detailed information regarding Chinese Antislip film-faced plywood.
ROCPLEX Truck Antislip Plywood FAQ
Q: What is ROCPLEX Truck Antislip Plywood?
A: This Plywood is a type of plywood that has a specially designed pattern imprinted onto one side of the panel. The pattern provides excellent slip resistance, making it ideal for use as flooring in truck trailers and other transportation applications.
Q: What are the advantages of using ROCPLEX Truck Antislip Plywood?
A: The main advantage of this Plywood is its slip-resistant surface, which helps prevent cargo from shifting during transportation. The plywood is also durable and has good structural properties, making it suitable for use in truck trailers and other transportation applications.
Q: What sizes are available in ROCPLEX Truck Antislip Plywood?
A: This Plywood is available in standard sizes of 4′ x 8′ and 5′ x 10′. Other sizes may be available upon request.
Q: What thicknesses are available in ROCPLEX Truck Antislip Plywood?
A: This Plywood is available in thicknesses ranging from 9mm to 18mm.
Q: What is the weight of ROCPLEX Truck Antislip Plywood?
A: The weight of this Plywood depends on the thickness of the panel. As a rough guide, a 4′ x 8′ panel of 18mm thickness weighs around 63 pounds.
